Support 1080P@60HZ USB 2.0 Extender (50Meter)
- group name
- USB Extender
- Min Order
- 1 piece
- brand name
- Dtech
- model
- DT-7014A
- Nearest port for product export
- Guangzhou, Shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, MoneyGram, Credit Card, PayPal, Westem Union, Cash
- update time
- Sat, 08 Aug 2020 14:39:44 GMT
Paramtents
Product origin Guangzhou China
Resolution 1080P@60HZ
Transmission distance 50M
Lead time within 2days if in stock
warranty 1year, lifetime free maintenance
Support USB2.0
Packging & Delivery
- 58cm x46cm x38cm
-
Min Order1 piece
Briefing
Detailed

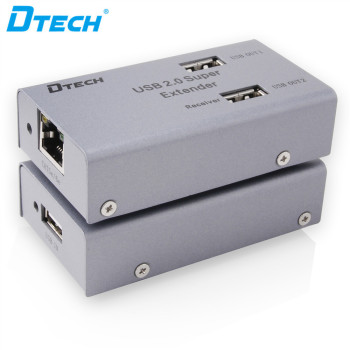

Dtech Support 1080P@60HZ USB 2.0 Extender (50Meter)
product introductionEasy to use CAT5/CAT5e and CAT6 USB 2.0 extender 50m with 4-port usb output usb extender
This USB2.0 extender adopts USB standard 2.0 protocol, compatible with 1.1 protocol. It can break the constraint of computer host to USB cable length. Users can connect a standard USB port via the sender’s end at the computer host, and can use 4 standard USB ports at the receiver’s far end via single LAN cable. It can be widely used in the fields of computers, education, bank security systems etc.
Technical parametersEasy to use CAT5/CAT5e and CAT6 USB 2.0 extender 50m with 4-port usb output usb extender
USB2.0 interface | USB2.0 interface, transfer rate up to 480Mbps, backward compatible with USB1.1 |
Transmit uncompressed signals | transmit speed can reach the USB2.0 standard speed. |
| CABLE | Supports standard CAT5/CAT5E and CAT6 |
connect | Can connect all USB devices, printers, network cameras, hard drives, mobile phones, digital cameras, game controller, etc. |
Rated input voltage | 5V; input current: external power supply 1000mA |
Product Dimensions | sender, receiver (L * W * H) 82X45X22 (mm) |
Product net weight | 205g±10g |
Product listEasy to use CAT5/CAT5e and CAT6 USB 2.0 extender 50m with 4-port usb output usb extender
1. USB 2.0 Extender (sender & receiver)*1pc |
2. USB AM-AM Data Cable *1pc |
3. 5V/1A power adapter *1pc |
4. user manual *1pc |
Guangzhou DTECH Electronics Technology Co.,Ltd, established in 2000, is a professional audio & video manufacturer which is focused on research, development, production and sales of audio & video products, such as HDMI extender, splitter, KVM, matrix, switcher, converter, HDMI fiber cable and Type-C etc. OEM & ODM services are available. We are located in Guangzhou, 30 minutes to Baiyun Airport and 1 hour to Guangzhou Port. With 18,000 square meters factory and more than 150 staff. Our production strictly comply with ISO9001 standard, all the products are certified by: HDMI Adopter, CE, FCC, RoHS etc.
(1)by express :2~5working days (including DHL,UPS,EMS,Fedex)
(2)by sea:21~45working days
(3)by air:3~7working days
(4)by Truck:28-33working days
Tips: We will send you a tracking number or BL documents after the goods was shipped .
1. Q: There is VGA interface on my computer and the TV, can I connect them with VGA cable?
A: You can connect any two devices only if they have a VGA interface.
2. Q: Why is there no icon of the computer on my TV when they are connected?
A: Find Resolution Setting on the computer and set it as Copy Mode.
3. Q: Why only video but no audio?
A: Firstly make sure the Drive is correct, then set the Audio Output as Output
from Graphics.
4. Q: Why is the image not full screen?
A: Firstly set the TV resolution correctly, then adjust the Graphics zoom function.
5. Q: How to adjust the resolution of the TV?
A: In Windows XP: click the right button on the desktop—Attributes—Setting—
click the TV icon—adjust the resolution.
In Windows7: click the right button on the desktop—Resolution--click the TV
icon—adjust the resolution.
6. Q: Why my resolution is lower than 1920*1440?
A: Firstly make sure your TV specification is up to 1920*1440, then adjust the res
olution on the computer.
7. Q: Why in expansion mode, the icons are in the center of the TV, not full screen?
A: Because in Expansion Mode, the TV resolution is 1920*1440, but the resolution
of the icons is lower than 1920*1440.
8. Q: There is HDMI interface on my computer and the TV, can i connect them with HDMI cable?
A: You can connect any two devices only if they have a HDMI interface.
