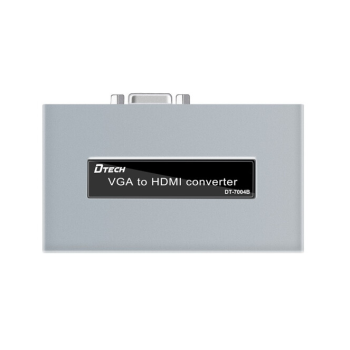

DT-7004B VGA to HDMI high-definition converter
- group name
- Converter
- Min Order
- 1 piece
- brand name
- Dtech
- model
- DT-7004B
- Nearest port for product export
- Guangzhou, Shenzhen
- Delivery clauses under the trade mode
- FOB, CIF, EXW
- Acceptable payment methods
- T/T, MoneyGram, Credit Card, PayPal, Westem Union, Cash
- update time
- Sat, 08 Aug 2020 18:36:03 GMT
Paramtents
Certification CE ROHS
Resolution 1080p;480p
Warranty 365days
MOQ 1pcs
OEM/ODM Yes
Power Supply USB charging cable/DV 5V
Shell Metal Shell
Packging & Delivery
- 13cm x7cm x5cm
-
Min Order1 piece
Briefing
working environment humidity: 65%
Detailed
Ⅰ. Production Introduction
Welcome to use our high quality video converter series product!
VGA to HDMI high-definition converter, can convert VGA analog video signal and 3.5mm interface stereo audio signal into HDMI digital signal, so that the analog audio and video signals of computer, DVR and so on can be doubled to high-definition HDMI signal output, easy to connect LCD TV, HD Display, etc.
Ⅱ.Production function parameter description
1, input VGA signal format: 1920*1080P backward compatible
2, output HDMI signal format: 1080P (50Hz/60Hz) backward compatible
3, output video signal impedance matching: 100Ω
4, working environment temperature: -25 ° C -75 ° C
5, working environment humidity: 65%
6, product size: 88 * 48.5 * 20mm (L*W*H)
7, maximum working current: DC5V/350mA
Ⅲ. Connection description
S.N. | S.N. | Name |
❶ | DC 5V | 5V DC power input |
❷ | AUDIO INPUT | Audio signal input |
❸ | VGA INPUT | VGA signal input |
❹ | HDMI OUT | HDMI signal output |
❺ | Signal | Signal indicator |
❻ | POWER | Power Indicator |
